Unused Stelzer Type SDR55-14V 55KW 30rpm Agitator Drive Unit and Shaft
| Beschreibung | |
|---|---|
| Artikel Nr. | 15.35.NV.02 |
| Material | Edelstahl 316 |
| Anzahl | 1 |
| Gewicht (kg) | 2250 |
| Zustand | Ungebrauchte |

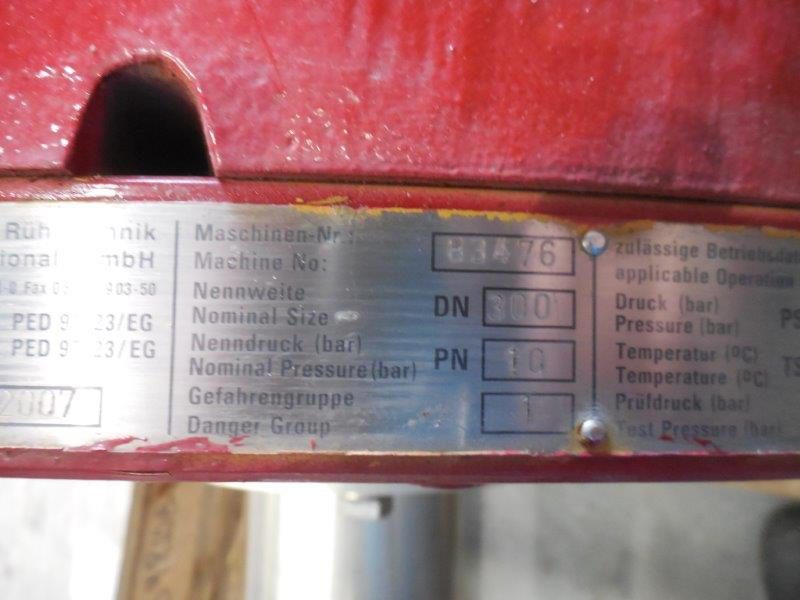

| Typenschild Hersteller | Ja |
| Hersteller | Stelzer Runrteshnik International GmbH |
| Baujahr | 2007 |
.jpg)
.jpg)
.jpg)
| Abmessungen | |
|---|---|
| Gesamthöhe (mm) | 1340 |
| Länge (mm) | 3450 |
| Breite (mm) | 900 |
| Anmerkungen | |
|---|---|

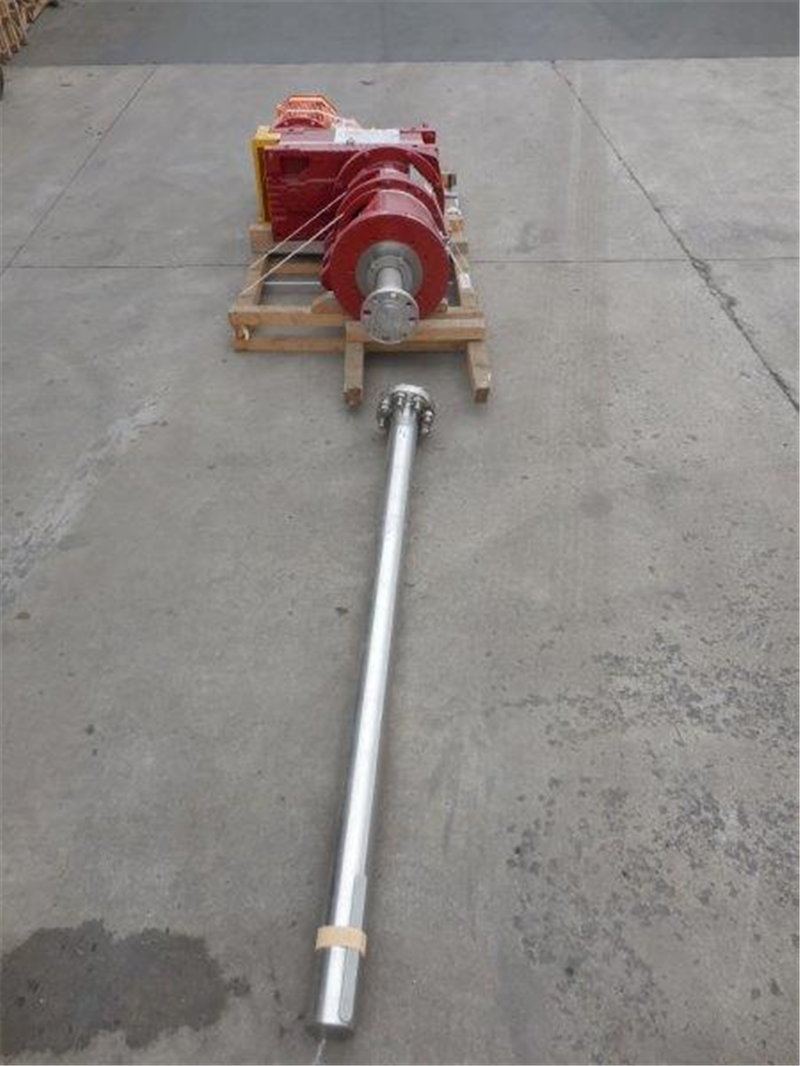

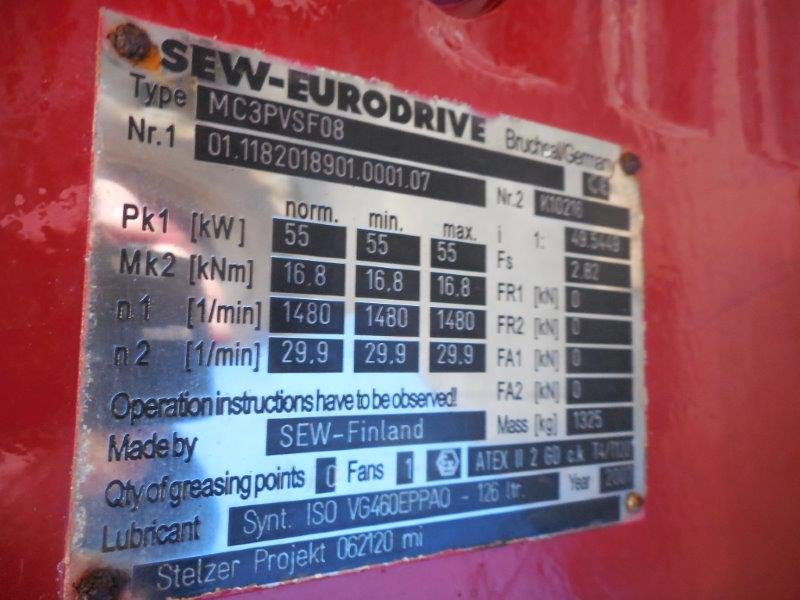

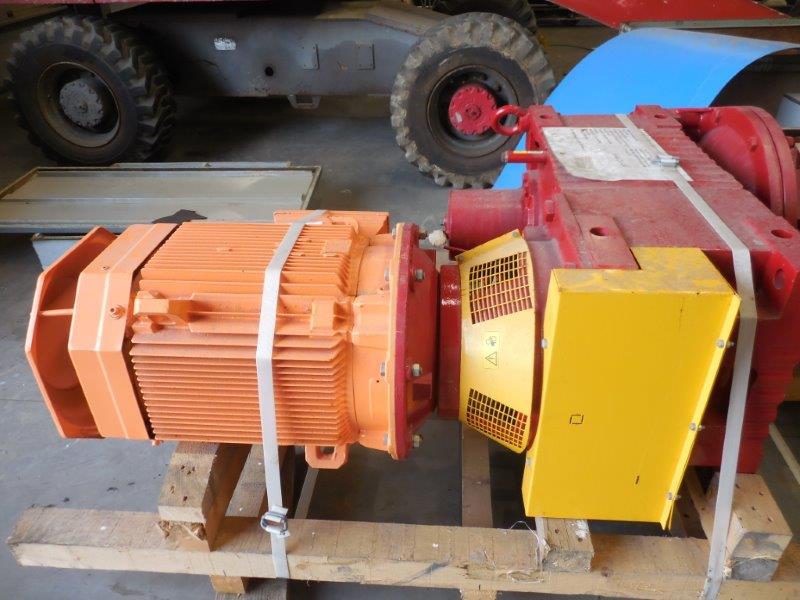

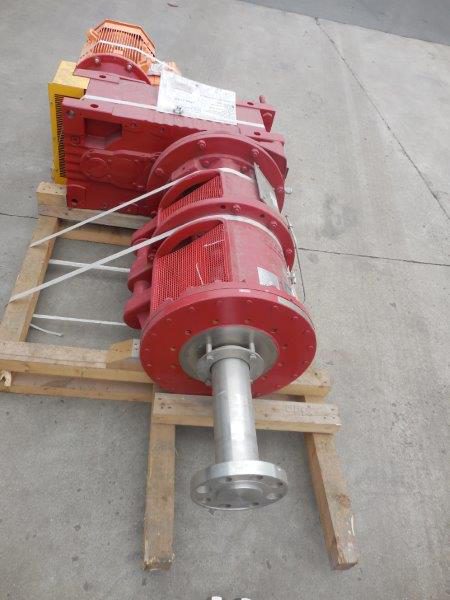

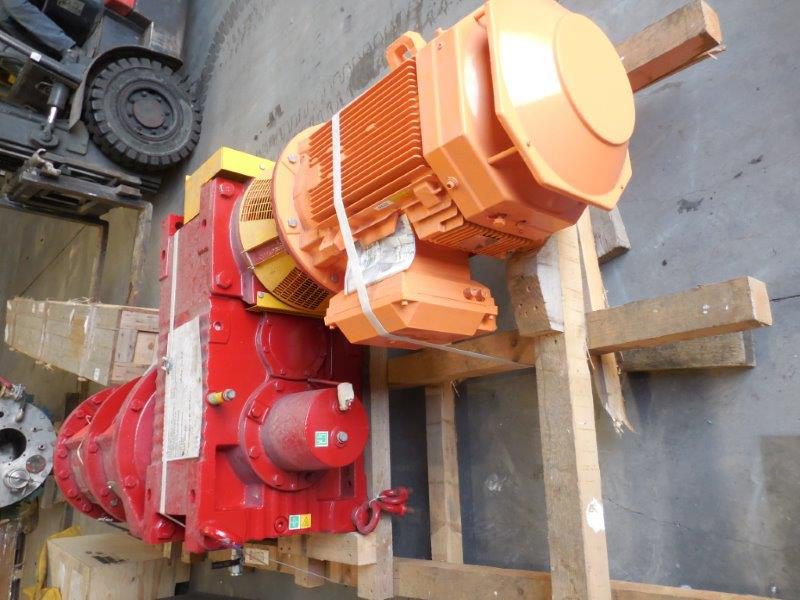

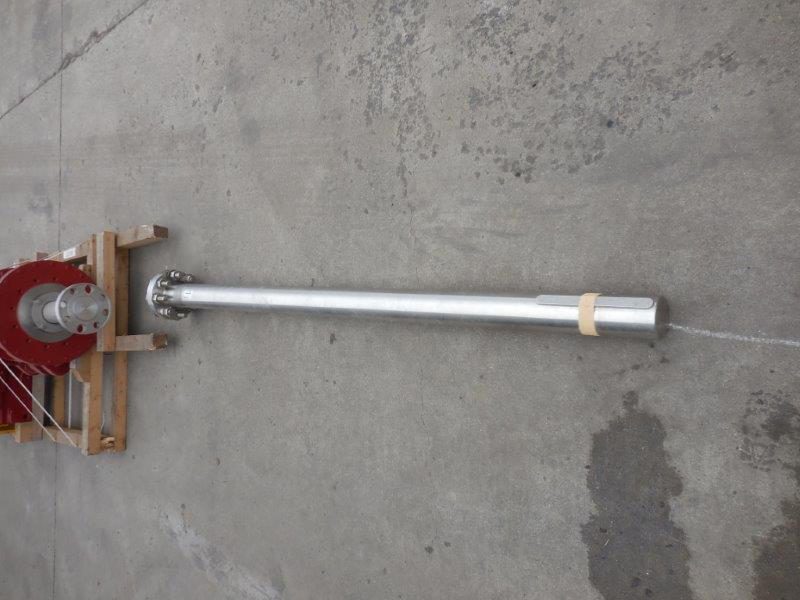

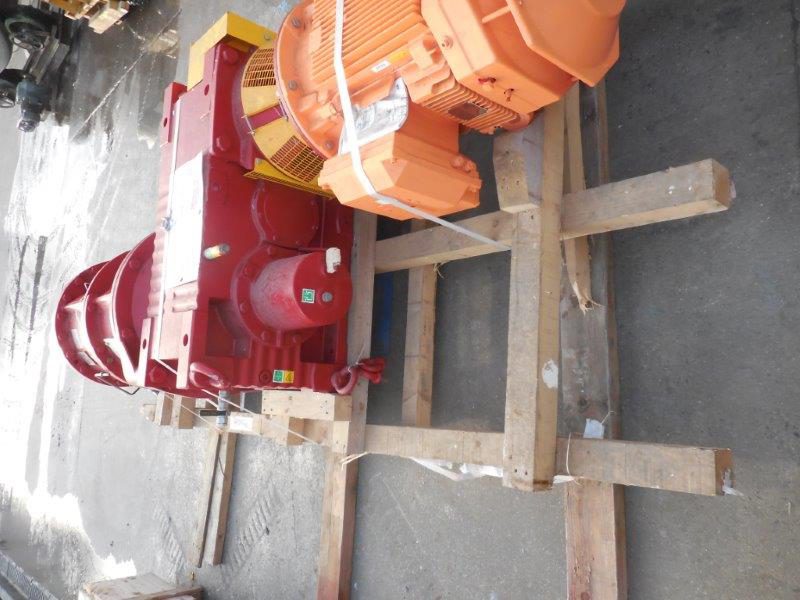

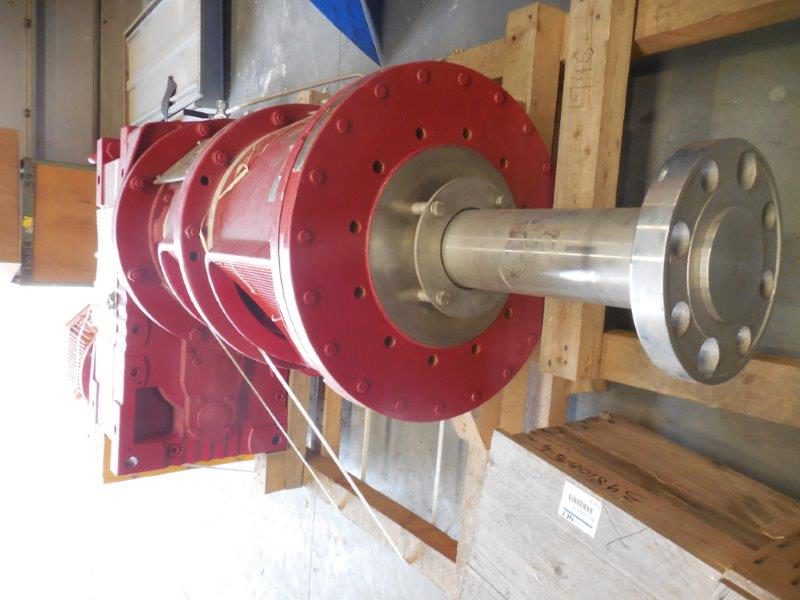

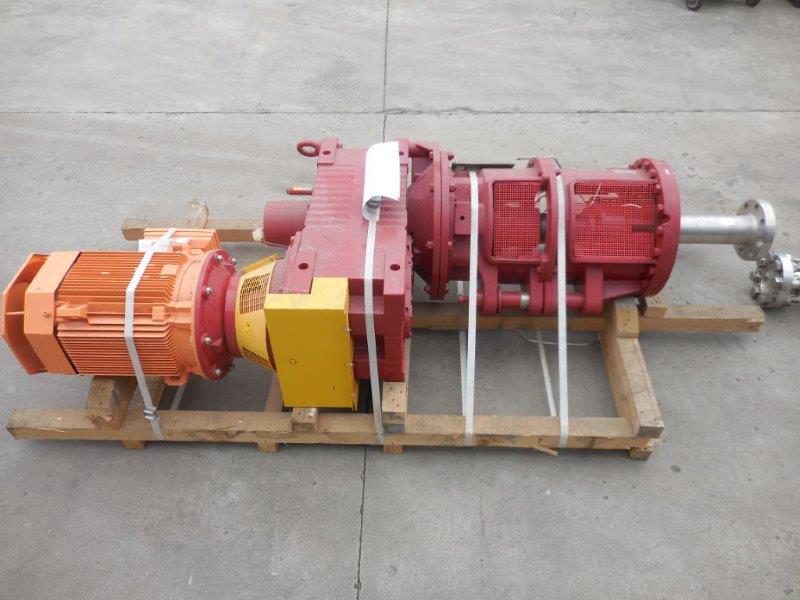

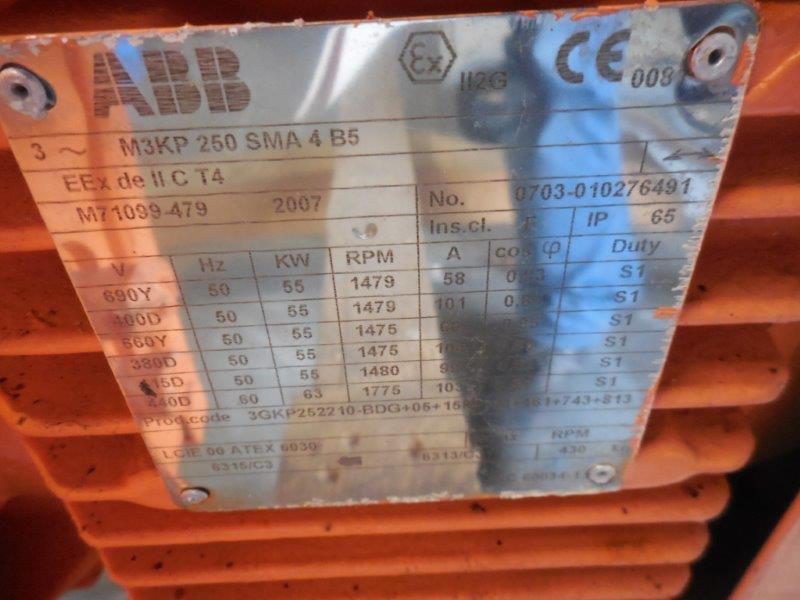

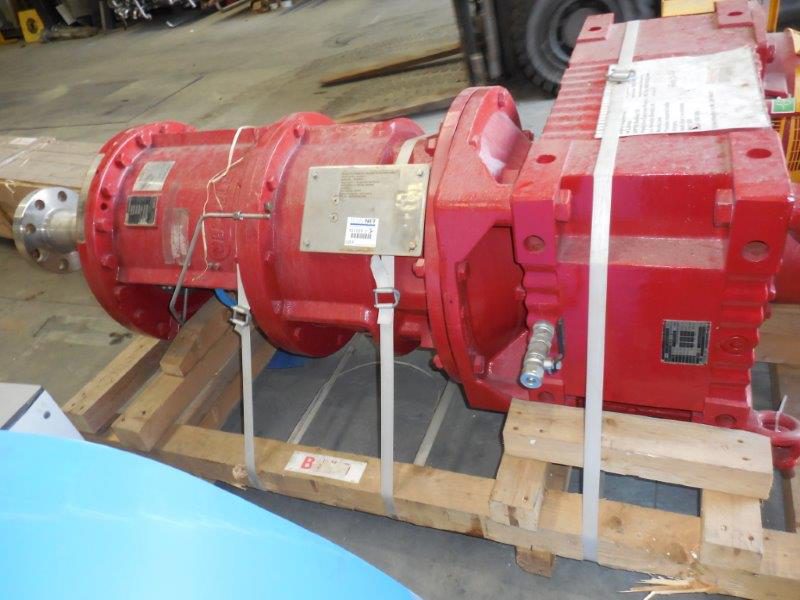

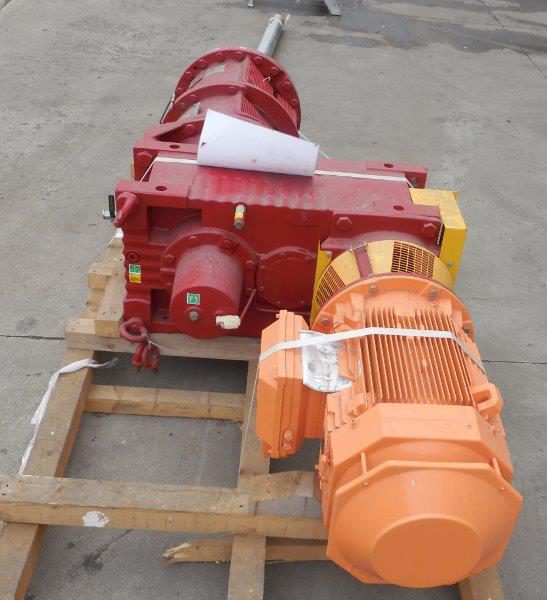

| Beschreibung (DE) | • Fitted with Sew-Eurodrive type MC3PVSF08 Atex II gearbox and ABB type Mk3P 250 SMA4 B5 motor. • Mounting flange approx. 670mm diam. Drive shaft 140mm diam x 450mm long with 300mm diam shaft mounting flange. • Was fitted with Burgmann shaft seal unit but this has been removed. • Agitator Shaft - 140mm diam x 2810mm long. Flange 300mm diam x 50mm thick • Manufacturer Stelzer Runrteshnik International GmbH • Year 2007 • Serial Number 83476 • CE Marked YES • Type of mixer CONVENTIONAL • Model SDR55-14V • Capacity Speed 30 RPM • Voltage 400 VOLTS • Frequency 50/60 HERTZ • Phase 3 • Current 55KW • Level of shipment preparation necessary ALREADY SKIDDED/BANDED • Estimated Shipping Weight 2250 KGS |
